奥斯达蓄电池GFM100 为水电站直流110V系统更换电池组

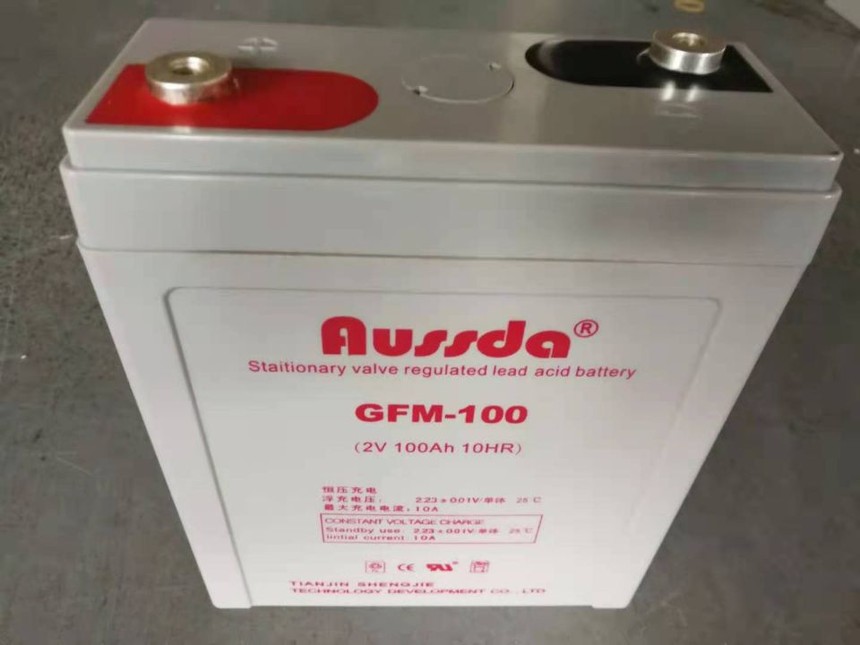

    华能雨汪电厂输煤、锅炉补给水、三级泵站110V直流蓄电池组均为奥斯达AUSSDA电源生产的GFM100型阀控式密封铅酸蓄电池，共153只，单只电压2V，容量为100Ah，蓄电池组均为柜式安装。输煤、锅炉补给水、三级泵站110V直流蓄电池组于2009年7月投运，截至目前已投运12年。2018年12月对输煤、锅炉补给水110V直流蓄电池组进行带负荷放电试验时，放电至5h单只电压低于2V，2019年2月对三级泵站110V直流蓄电池组进行带负荷放电试验时，放电至5h单只电压低于2V，不满足DL/T724-2000电力系统用蓄电池直流电源装置运行与维护规程6.3.2：发电厂或变电所中只有一组电池，不能退出运行、也不能作全核对性放电、只能用I10电流恒流放出额定容量的50%，在放电过程中，蓄电池组端电压不得低于2V*N。基于以上原因，需对奥斯达蓄电池组进行更换。

The 110V DC battery for coal transportation, boiler replenishment water and three-stage pump station was put into operation in July 2009, and has been in operation for 12 years. In December 2018, when the 110V DC battery group for coal transport and boiler supply water was tested with load, the voltage of a single battery was lower than 2V when it was discharged to 5h. In February 2019, when the 110V DC battery group of the tertiary pumping station was tested with load, the voltage of a single battery was lower than 2V when it was discharged to 5h. Do not meet the DL/T724-2000 power system battery DC power supply device operation and maintenance regulations 6.3.2: power plant or substation, there is only one group of batteries, can not quit operation, can not be fully checked discharge, can only use I10 current constant discharge of 50% of the rated capacity, in the discharge process, the battery terminal voltage shall not be less than 2V*N. For the above reasons, it is necessary to replace the AUSDA battery bank.
